Product category:Automatic terminal machine series   Back

Product Name:Automatic terminal crimping machine (two ends insert plastic case)

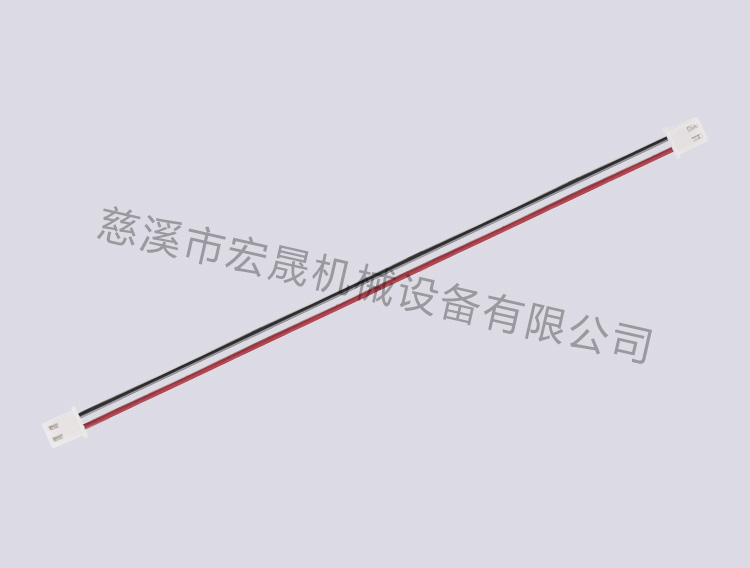

Finished shot



Features

 ●  It can continuous automatic processing the automatic feeding of wire pulling and cutting, both ends stripping crimping terminals, inserting plastic case.

●   The equipment adopts servo terminal machines(ABS servo). The operation is accurate and simple, the performance is stable, the labor is saved, and the quality stability is guaranteed.

●   It adopts touching human-computer interface to adjust conveniently and quickly.

Technical Parameters

Model   HS-62319-A
Power   AC220V/50HZ  (Single-phase)
Function   Wire cutting, both ends striping,crimping&inserting plastic case.
Capacity   20pcs/min (wire length:less than 500mm)
 Wire size   0.3m-0.75m
Cutting length   120mm-800mm (The wire more longer,the speed more lower)
 Stripping length   1mm-10mm
 Cutting accuracy   0.5mm+ less than 0.2mm+cutting length*0.2%
Crimping capacity   2.0T
 Air pressure   0.6-0.7Mpa (use dry and clean air)
Detection device   Lack of wire or knotted, terminal crimping detection,plastic case inserting detection,pressure management device.
 Dimension   2400L*2200W*1800H (mm)
 Weight   About 1500kg
Other   Choose Terminal visual inspection(Special requirements can be customized.)
