Product category:Automatic terminal machine series   Back

Product Name:Automatic terminal crimping machine(Thermal Protection)

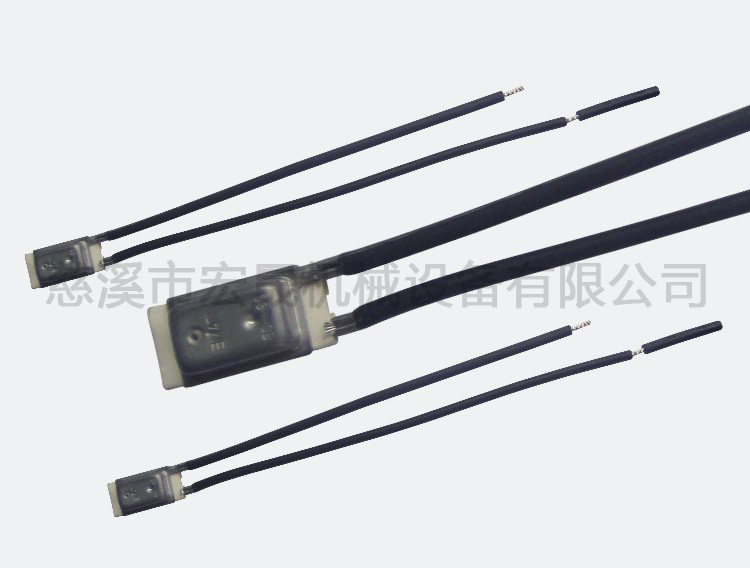

Finished shot



Features

●   The equipment is mainly made of original imported parts;

●   The wire feeding wheels can be adjusted by micro tuning which is easy operation;

●   Wire harness size are adjusted on the screen by touching screen panel;

●   Instead of reel terminal, vibrating disk feeding the loose terminals automaticlly,high stability,reduce 30% cost.

Technical Parameters

Model  HS-61225
Power  AC220V  50HZ
Function  Wire cutting, one end crimping, double ends stripping , two-wire crimping
Capacity  30sets/min(Length: one wire 150mm, the other wire 60mm;) If the length of two wire is same, the efficiency up to 3000 sets.
Processing Diameter  AWG#28-AWG#18(Customized for thick wire)
Cutting Length  50mm-9999mm
Stripping Length  0.1mm-10mm
Cutting Accuracy  Range:0.1mm+cutting length*0.2%
Crimping capacity  2.0T
Air pressure  0.6-0.7Mpa  (Use a clean, dry gas source)
Detection device  Lack of wire or knotted , terminal crimping detection
Dimensions  780Wx600Lx1050H (mm)
Weight  About 165kg
