Product category:Automatic terminal machine series   Back

Product Name:Automatic terminal crimping machine(both ends、thick wires)

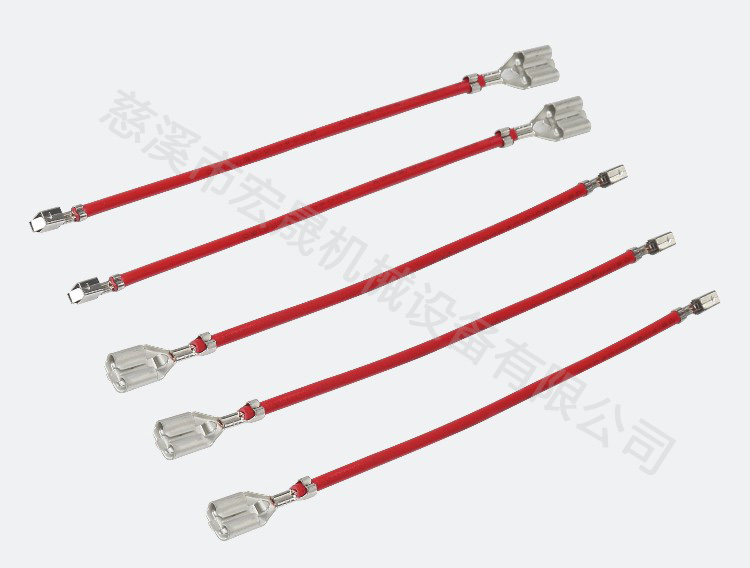

Finished shot



Features

●   The machine uses a modular design, easy operation and maintenance;

●   Wire harness size are adjusted on the screen by touching screen panel.

●   The terminal crimping machine adopts frequency motor with less noise and energy saving;

●   The machine is using synchronous feeding system to make sure no damage on the surface, and also greatly improve the process quality and precision.

Technical Parameters

Model  HS-62314
Power  AC 220V  50Hz  single
Function  wire cutting , stripping , both ends crimping
Capacity  35pcs/min(Length within 200mm)
Processing Diameter  1mm2 - 4mm2
Cutting Length  60mm-9999mm
Stripping length  1mm--10mm
Cutting Accuracy  Range:0.1mm+cutting length*0.2%
Crimping Capacity  2.0T
Air Pressure  0.6-0.7Mpa  (Use a clean, dry gas source)
Detection device  Lack of wire or knotted, terminal crimping detection
Air Pressure  1580W×1200L×1200H (mm)
Weight  About 248Kg
