Product category:Automatic terminal machine series   Back

Product Name:Automatic terminal crimping machine(one end double wires)

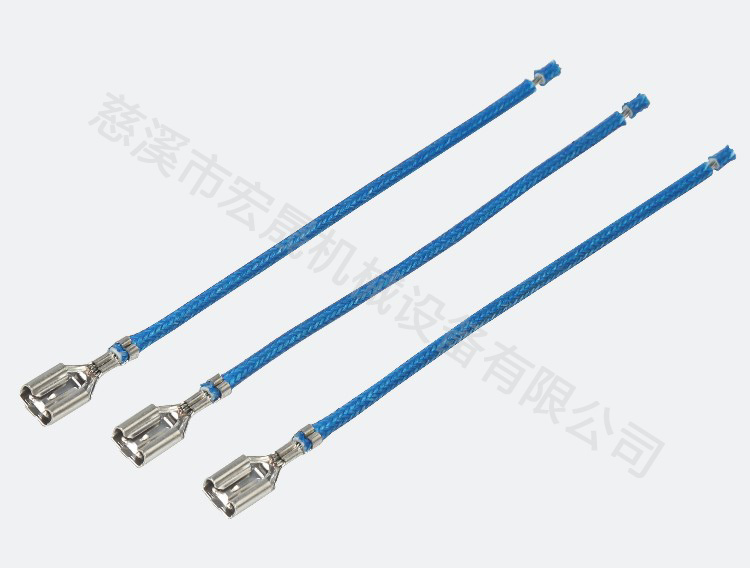

Finished shot



Features

●   The machine uses a modular design, easy operation and maintenance. And it can process two wires at the same time which improves the production and reduces labor costs;

●   Wire harness size are adjusted on the screen by touching screen panel;

●   The terminal crimping machine adopts frequency motor with less noise and energy saving.

Technical Parameters

Model  HS-61215
Power  AC 220V  50Hz  Single
Function  wire cutting , stripping , one end crimping
Capaciy  90pcs/min(Length within 200mm)
Processing Diameter  AWG#16-AWG#28
Cutting Length  40mm-9999mm
Cutting Accuracy  Range:0.1mm+cutting length*0.2%
Crimping Capacity  2.0T
Air Pressure  0.6-0.7Mpa  (Use a clean, dry gas source)
Detection device  Lack of wire or knotted, terminal crimping
Dimensions  708W×600L×1050H (mm)
Weight About 165Kg
