Product category:Stripping Machine   Back

Product Name:automatic bellow cutting machine

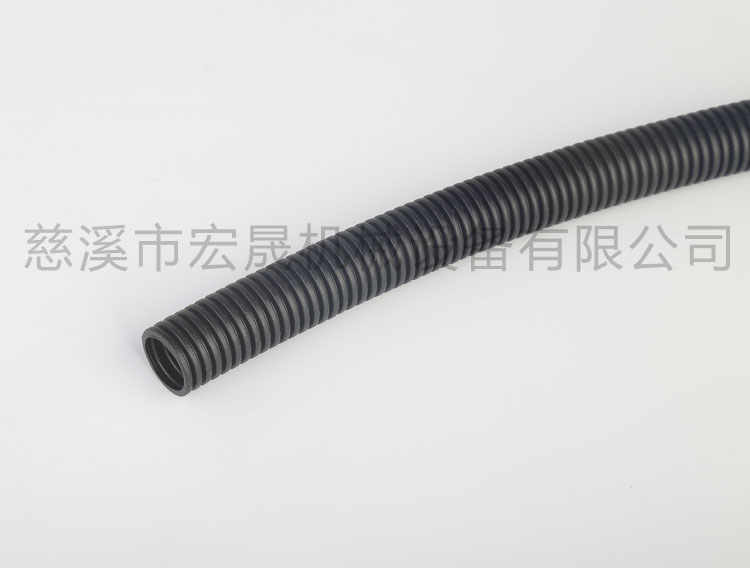

Finished shot



Features

●   The machine has high performance microprocessor, which is designed for automobile wire harness, controlled by high precision PLC with easy operation.

●   It’s used for cut round plastic pipe and bellows with high efficiency and stable performance.

●   The machine is feed by stepping motor, which is stable and accurate. It’s controlled sable by integrated circuit with easy maintenance. The touch screen shows various data at a glance.

Technical Parameters

Model   automatic bellow cutting machine
power  220V 50Hz   single phase
wattage  500W
cutting length   50-9999.9mm
cutting tolerance    ±1+Lx 0.01mm (L=cutting length)
cutting times

  60-110 pcs/min

speed   L=100mm,100PCS/Min
weight   About 180 Kg
outline dimension   1700L*700W*1400H (mm)
